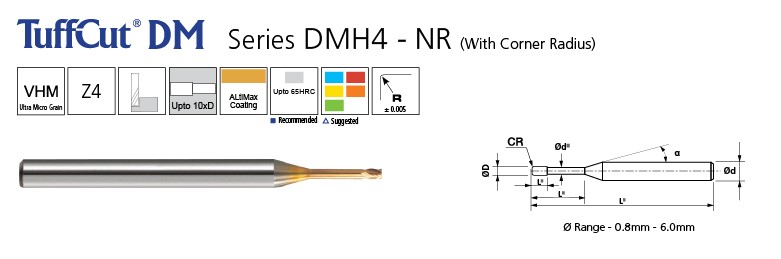

| Tool No. | a | CR | L1 | L2 | L3 | L3 1° | L3 1°30' | L3 2° | L3 3° | L3 30' | øD | øD1 | Α |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DMH4 008N-R005-020 | 16° | R0.05 | 50 | 0.48 | 2 | 2.65 | 2.82 | 2.98 | 3.26 | 2.45 | 0.8, 4 | 0.78 | - |
| DMH4 008N-R005-030 | 16° | R0.05 | 50 | 0.48 | 3 | 3.78 | 3.98 | 4.16 | 4.48 | 3.53 | 4, 0.8 | 0.78 | - |
| DMH4 008N-R01-030 | 16° | R0.1 | 50 | 0.48 | 3 | 3.77 | 3.97 | 4.15 | 4.47 | 3.53 | 4, 0.8 | 0.78 | - |
| DMH4 008N-R02-020 | 16° | R0.2 | 50 | 0.48 | 2 | 2.63 | 2.8 | 2.95 | 3.22 | 2.43 | 4, 0.8 | 0.78 | - |
| DMH4 010N-R005-020 | 16° | R0.05 | 50 | 0.8 | 2 | 2.72 | 2.88 | 3.03 | 3.3 | 2.54 | 1, 4 | 0.95 | - |
| DMH4 010N-R02-060 | 16° | R0.2 | 50 | 0.8 | 6 | 7.1 | 7.35 | 7.6 | 8.16 | 6.78 | 4, 1 | 0.95 | - |
| DMH4 010N-R02-080 | 16° | R0.2 | 50 | 0.8 | 8 | 9.24 | 9.55 | 9.88 | 10.61 | 8.89 | 4, 1 | 0.95 | - |
| DMH4 010N-R03-020 | 16° | R0.3 | 50 | 0.8 | 2 | 2.69 | 2.84 | 2.98 | 3.24 | 2.52 | 4, 1 | 0.95 | - |
| DMH4 010N-R03-030 | 16° | R0.3 | 50 | 0.8 | 3 | 3.81 | 3.99 | 4.16 | 4.47 | 3.59 | 1, 4 | 0.95 | - |
| DMH4 012N-R03-040 | 16° | R0.3 | 50 | 0.96 | 4 | 4.24 | 4.38 | 4.53 | 4.86 | 4.11 | 4, 1.2 | 1.14 | - |
| DMH4 012N-R03-060 | 16° | R0.3 | 50 | 0.96 | 6 | 6.38 | 6.59 | 6.81 | 7.31 | 6.18 | 4, 1.2 | 1.14 | - |
| DMH4 015N-R02-120 | 16° | R0.2 | 55 | 1.2 | 12 | 12.77 | 13.19 | 13.65 | 14.67 | 12.37 | 4, 1.5 | 1.45 | - |
| DMH4 015N-R02-160 | 16° | R0.2 | 60 | 1.2 | 16 | 17.03 | 17.6 | 18.21 | 19.56 | 16.49 | 1.5, 4 | 1.45 | - |
| DMH4 015N-R03-040 | 16° | R0.3 | 50 | 1.2 | 4 | 4.25 | 4.39 | 4.54 | 4.87 | 4.12 | 4, 1.5 | 1.45 | - |
| DMH4 015N-R05-040 | 16° | R0.5 | 50 | 1.2 | 4 | 4.24 | 4.38 | 4.52 | 4.85 | 4.11 | 1.5, 4 | 1.45 | - |
| DMH4 020N-R005-040 | 16° | R0.05 | 50 | 1.6 | 4 | 4.28 | 4.43 | 4.58 | 4.93 | 4.15 | 4, 2 | 1.92 | - |
| DMH4 020N-R005-100 | 16° | R0.05 | 50 | 1.6 | 10 | 10.67 | 11.03 | 11.41 | 12.27 | 10.34 | 4, 2 | 1.92 | - |
| DMH4 020N-R01-040 | 16° | R0.1 | 50 | 1.6 | 4 | 4.29 | 4.43 | 4.59 | 4.93 | 4.16 | 2, 4 | 1.92 | - |
| DMH4 020N-R01-200 | 16° | R0.1 | 60 | 1.6 | 20 | 21.33 | 22.04 | 22.81 | - | 20.66 | 4, 2 | 1.92 | - |
| DMH4 020N-R02-040 | 16° | R0.2 | 50 | 1.6 | 4 | 4.29 | 4.43 | 4.58 | 4.92 | 4.15 | 4, 2 | 1.92 | - |
| DMH4 020N-R05-040 | 16° | R0.5 | 50 | 1.6 | 4 | 4.28 | 4.41 | 4.56 | 4.89 | 4.15 | 4, 2 | 1.92 | - |
| DMH4 020N-R05-060 | 16° | R0.5 | 50 | 1.6 | 6 | 6.41 | 6.62 | 6.84 | 7.34 | 6.21 | 2, 4 | 1.92 | - |
| DMH4 020N-R05-120 | 16° | R0.5 | 55 | 1.6 | 12 | 12.8 | 13.22 | 13.67 | 14.68 | 12.4 | 4, 2 | 1.92 | - |
| DMH4 020N-R05-160 | 16° | R0.5 | 60 | 1.6 | 16 | 17.06 | 17.62 | 18.23 | 19.57 | 16.53 | 2, 4 | 1.92 | - |
