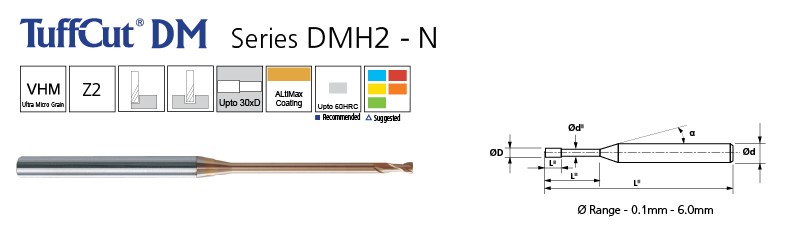

MA Ford Europe. DMH2-N

Tool No.	a	L1	L2	L3	L3 1°	L3 1°30'	L3 2°	L3 3°	L3 30'	øD	øD1
DMH2 002N-005	16°	45	0.3	0.5	0.7	0.74	0.78	0.85	0.65	0.2, 4	0.18
DMH2 002N-010	16°	45	0.3	1	1.25	1.31	1.36	1.45	1.18	0.2, 4	0.18
DMH2 003N-010	16°	45	0.4	1	1.3	1.37	1.43	1.55	1.22	4, 0.3	0.28
DMH2 003N-020	16°	45	0.4	2	2.36	2.46	2.55	2.7	2.24	0.3, 4	0.28
DMH2 004N-020	16°	45	0.6	2	2.47	2.6	2.71	2.91	2.31	0.4, 4	0.38
DMH2 004N-040	16°	45	0.6	4	4.65	4.82	4.96	5.21	4.44	0.4, 4	0.38
DMH2 005N-025	16°	45	0.7	2.5	3.12	3.29	3.43	3.69	2.92	0.5, 4	0.48
DMH2 005N-060	16°	45	0.7	6	6.94	7.17	7.37	7.71	6.64	0.5, 4	0.48
DMH2 006N-020	16°	45	0.9	2	2.62	2.8	2.96	3.24	2.39	0.6, 4	0.58
DMH2 006N-030	16°	45	0.9	3	3.75	3.96	4.14	4.32	3.49	4, 0.6	0.58
DMH2 007N-040	16°	45	1	4	4.86	5.09	5.29	5.69	4.57	4, 0.7	0.68
DMH2 010N-040	16°	45	1.5	4	4.95	5.16	5.36	5.76	4.69	4, 1	0.95
DMH2 010N-050	16°	45	1.5	5	6.04	6.27	6.49	6.98	5.75	4, 1	0.95
DMH2 010N-080	16°	45	1.5	8	9.26	9.58	9.91	10.65	8.9	4, 1	0.95
DMH2 010N-300	16°	70	1.5	30	32.69	33.79	34.96	-	31.66	1, 4	0.95
DMH2 012N-060	16°	45	1.8	6	6.4	6.61	6.84	7.36	6.19	1.2, 4	1.14
DMH2 015N-040	16°	45	2.3	4	4.27	4.41	4.57	4.91	4.13	1.5, 4	1.44
DMH2 015N-060	16°	45	2.3	6	6.4	6.61	6.84	7.36	6.19	4, 1.5	1.44
DMH2 015N-140	16°	50	2.3	14	14.91	15.42	15.95	17.15	14.44	1.5, 4	1.44
DMH2 015N-160	16°	50	2.3	16	17.04	17.62	18.23	19.59	16.51	1.5, 4	1.44
DMH2 018N-100	-	-	-	-	-	-	-	-	-	-	-
DMH2 020N-160	16°	50	3	16	17.08	17.65	18.27	-	16.54	2, 4	1.91
DMH2 025N-080	16°	45	3.7	8	8.56	8.85	9.16	9.85	8.29	4, 2.5	2.41
DMH2 025N-100	16°	45	3.7	10	10.69	11.05	11.44	12.29	10.35	2.5, 4	2.41
