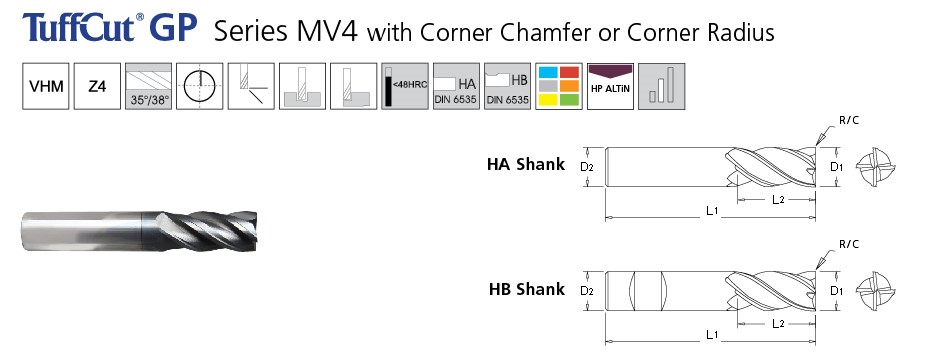

| Tool No. | C x 45° | L1 | L2 | øD1 | øD2 | R | Shank Form |
|---|---|---|---|---|---|---|---|
| AST309968 | - | - | - | - | - | - | - |
| MV4 03-0.25RHX | - | 64.0 | 6.0 | 3.0 | 6.0 | 0.25 | HA |
| MV4 0303-0.25RHX | - | 50.0 | 6.0 | 3.0 | 3.0 | 0.25 | HA |
| MV4 0303-12-0.25RHX | - | 50.0 | 12.0 | 3.0 | 3.0 | 0.25 | HA |
| MV4 0303-12HX | - | 50.0 | 12.0 | 3.0 | 3.0 | 1.0 | HA |
| MV4 0303HX | 0.1 | 50.0 | 6.0 | 3.0 | 3.0 | - | HA |
| MV4 03HX | 0.1 | 64.0 | 6.0 | 3.0 | 6.0 | - | HA |
| MV4 04-0.25RHX | - | 64.0 | 11.0 | 4.0 | 6.0 | 0.25 | HA |
| MV4 04-0.5RHX | - | 64.0 | 11.0 | 4.0 | 6.0 | 0.5 | HA |
| MV4 04-1.0RHX | - | 64.0 | 11.0 | 4.0 | 6.0 | 1.0 | HA |
| MV4 04HX | 0.1 | 64.0 | 11.0 | 4.0 | 6.0 | - | HA |
| MV4 05-0.25RHX | - | 64.0 | 12.0 | 5.0 | 6.0 | 0.25 | HA |
| MV4 05-0.5RHX | - | 64.0 | 12.0 | 5.0 | 6.0 | 0.5 | HA |
| MV4 05-1.0RHX | - | 64.0 | 12.0 | 5.0 | 6.0 | 1.0 | HA |
| MV4 05-15-0.5RHX | - | 64.0 | 15.0 | 5.0 | 6.0 | 0.5 | HA |
| MV4 05-15HX | 0.1 | 64.0 | 15.0 | 5.0 | 6.0 | - | HA |
| MV4 05HX | 0.1 | 64.0 | 12.0 | 5.0 | 6.0 | - | HA |
| MV4 06-0.25RHX | - | 64.0 | 15.0 | 6.0 | 6.0 | 0.25 | HA |
| MV4 06-0.25RHXW | - | 64.0 | 15.0 | 6.0 | 6.0 | 0.25 | HB |
| MV4 06-0.5RHX | - | 64.0 | 15.0 | 6.0 | 6.0 | 0.5 | HA |
| MV4 06-0.5RHXW | - | 64.0 | 15.0 | 6.0 | 6.0 | 0.5 | HB |
| MV4 06-1.0RHX | - | 64.0 | 15.0 | 6.0 | 6.0 | 1.0 | HA |
| MV4 06-1.0RHXW | - | 64.0 | 15.0 | 6.0 | 6.0 | 1.0 | HB |
| MV4 06-19-0.25RHX | - | 64.0 | 19.0 | 6.0 | 6.0 | 0.25 | HA |
