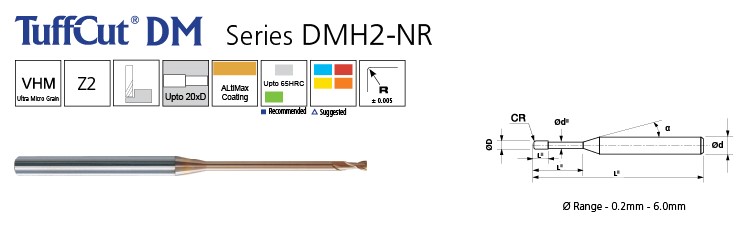

| Tool No. | a | CR | e1 1° | e1 1°30' | e1 2° | e1 3° | e1 30' | L1 | L2 | L3 | øD | øD1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DMH2 004N-R01-010 | 16° | R0.1 | 1.38 | 1.46 | 1.55 | 1.69 | 1.28 | 50 | 0.4 | 1 | 0.4, 4 | 0.38 |
| DMH2 004N-R01-040 | 16° | R0.1 | 4.64 | 4.81 | 4.95 | 5.2 | 4.44 | 50 | 0.4 | 4 | 0.4, 4 | 0.38 |
| DMH2 005N-R005-010 | 16° | R0.05 | 1.46 | 1.57 | 1.67 | 1.86 | 1.34 | 50 | 0.5 | 1 | 0.5, 4 | 0.48 |
| DMH2 005N-R01-010 | 16° | R0.1 | 1.45 | 1.56 | 1.66 | 1.85 | 1.34 | 50 | 0.5 | 1 | 4, 0.5 | 0.48 |
| DMH2 005N-R01-030 | 16° | R0.1 | 3.67 | 3.84 | 4 | 4.26 | 3.45 | 50 | 0.5 | 3 | 4, 0.5 | 0.48 |
| DMH2 006N-R01-020 | 16° | R0.1 | 2.6 | 2.78 | 2.93 | 3.2 | 2.37 | 50 | 0.6 | 2 | 0.6, 4 | 0.58 |
| DMH2 006N-R01-030 | 16° | R0.1 | 3.73 | 3.94 | 4.11 | 4.28 | 3.47 | 50 | 0.6 | 3 | 4, 0.6 | 0.58 |
| DMH2 006N-R01-040 | 16° | R0.1 | 4.84 | 5.07 | 5.26 | 5.65 | 4.55 | 50 | 0.6 | 4 | 4, 0.6 | 0.58 |
| DMH2 006N-R02-030 | 16° | R0.2 | 3.7 | 3.91 | 4.09 | 4.41 | 3.44 | 50 | 0.6 | 3 | 0.6, 4 | 0.58 |
| DMH2 008N-R005-080 | 16° | R0.05 | 9.18 | 9.5 | 9.83 | 10.56 | 8.79 | 50 | 0.8 | 8 | 4, 0.8 | 0.78 |
| DMH2 008N-R02-040 | 16° | R0.2 | 4.82 | 5.05 | 5.23 | 5.61 | 4.53 | 50 | 0.8 | 4 | 4, 0.8 | 0.78 |
| DMH2 010N-R005-040 | 16° | R0.05 | 4.92 | 5.14 | 5.33 | 5.73 | 4.72 | 50 | 1 | 4 | 4, 1 | 0.95 |
| DMH2 010N-R005-080 | 16° | R0.05 | 9.24 | 9.55 | 9.88 | 10.62 | 8.87 | 50 | 1 | 8 | 1, 4 | 0.95 |
| DMH2 010N-R005-100 | 16° | R0.05 | 11.37 | 11.75 | 12.16 | 13.07 | 10.97 | 50 | 1 | 10 | 1, 4 | 0.95 |
| DMH2 010N-R01-040 | 16° | R0.1 | 4.93 | 5.14 | 5.33 | 5.72 | 4.67 | 50 | 1 | 4 | 4, 1 | 0.95 |
| DMH2 010N-R01-080 | 16° | R0.1 | 9.24 | 9.56 | 9.88 | 10.61 | 8.88 | 50 | 1 | 8 | 4, 1 | 0.95 |
| DMH2 010N-R02-030 | 16° | R0.2 | 3.8 | 3.99 | 4.16 | 4.47 | 3.58 | 50 | 1 | 3 | 1, 4 | 0.95 |
| DMH2 010N-R02-040 | 16° | R0.2 | 4.91 | 5.12 | 5.3 | 5.68 | 4.65 | 50 | 1 | 4 | 4, 1 | 0.95 |
| DMH2 010N-R02-050 | 16° | R0.2 | 6 | 6.23 | 6.45 | 6.92 | 5.71 | 50 | 1 | 5 | 4, 1 | 0.95 |
| DMH2 010N-R02-060 | 16° | R0.2 | 7.08 | 7.34 | 7.57 | 8.13 | 6.76 | 50 | 1 | 6 | 4, 1 | 0.95 |
| DMH2 010N-R02-080 | 16° | R0.2 | 9.22 | 9.54 | 9.85 | 10.57 | 8.86 | 50 | 1 | 8 | 4, 1 | 0.95 |
| DMH2 010N-R03-020 | 16° | R0.3 | 2.67 | 2.84 | 2.95 | 3.19 | 2.49 | 50 | 1 | 2 | 4, 1 | 0.95 |
| DMH2 012N-R02-120 | 16° | R0.2 | 12.77 | 13.19 | 13.65 | 14.67 | 12.37 | 55 | 1.2 | 12 | 1.2, 4 | 1.14 |
| DMH2 015N-R01-060 | 16° | R0.1 | 6.38 | 6.6 | 6.83 | 7.34 | 6.18 | 50 | 1.5 | 6 | 4, 1.5 | 1.45 |
