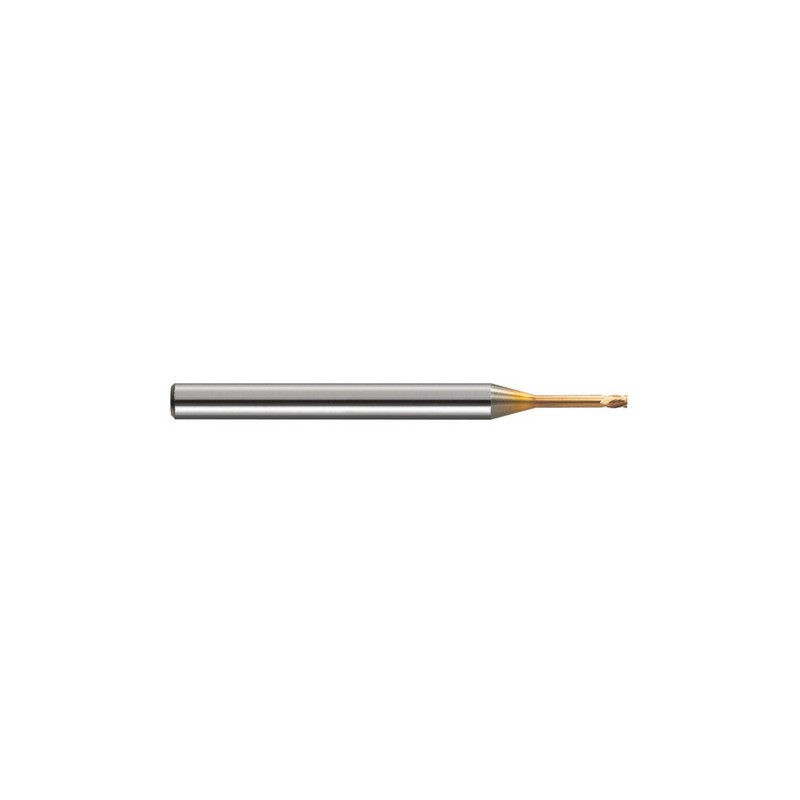

Product Id: DMH4 020N-R05-040
| L2 | 1.6 |
|---|---|
| CR | R0.5 |
| øD | 4, 2 |
| øD1 | 1.92 |
| L3 1° | 4.28 |
| L3 | 4 |
| L3 1°30' | 4.41 |
| a | 16° |
| L3 2° | 4.56 |
| L1 | 50 |
| L3 3° | 4.89 |
| L3 30' | 4.15 |
| Tool No. | L2 | CR | øD | øD1 | L3 1° | L3 | L3 1°30' | a | L3 2° | L1 | L3 3° | L3 30' | Α |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DMH4 020N-R05-040 | 1.6 | R0.5 | 4, 2 | 1.92 | 4.28 | 4 | 4.41 | 16° | 4.56 | 50 | 4.89 | 4.15 | - |
| DMH4 008N-R005-020 | 0.48 | R0.05 | 0.8, 4 | 0.78 | 2.65 | 2 | 2.82 | 16° | 2.98 | 50 | 3.26 | 2.45 | - |
| DMH4 008N-R005-030 | 0.48 | R0.05 | 4, 0.8 | 0.78 | 3.78 | 3 | 3.98 | 16° | 4.16 | 50 | 4.48 | 3.53 | - |
| DMH4 008N-R01-030 | 0.48 | R0.1 | 4, 0.8 | 0.78 | 3.77 | 3 | 3.97 | 16° | 4.15 | 50 | 4.47 | 3.53 | - |
| DMH4 008N-R02-020 | 0.48 | R0.2 | 4, 0.8 | 0.78 | 2.63 | 2 | 2.8 | 16° | 2.95 | 50 | 3.22 | 2.43 | - |
| DMH4 012N-R03-040 | 0.96 | R0.3 | 4, 1.2 | 1.14 | 4.24 | 4 | 4.38 | 16° | 4.53 | 50 | 4.86 | 4.11 | - |
| DMH4 012N-R03-060 | 0.96 | R0.3 | 4, 1.2 | 1.14 | 6.38 | 6 | 6.59 | 16° | 6.81 | 50 | 7.31 | 6.18 | - |
| DMH4 015N-R02-120 | 1.2 | R0.2 | 4, 1.5 | 1.45 | 12.77 | 12 | 13.19 | 16° | 13.65 | 55 | 14.67 | 12.37 | - |
| DMH4 015N-R02-160 | 1.2 | R0.2 | 1.5, 4 | 1.45 | 17.03 | 16 | 17.6 | 16° | 18.21 | 60 | 19.56 | 16.49 | - |
| DMH4 015N-R03-040 | 1.2 | R0.3 | 4, 1.5 | 1.45 | 4.25 | 4 | 4.39 | 16° | 4.54 | 50 | 4.87 | 4.12 | - |
| DMH4 015N-R05-040 | 1.2 | R0.5 | 1.5, 4 | 1.45 | 4.24 | 4 | 4.38 | 16° | 4.52 | 50 | 4.85 | 4.11 | - |
| DMH4 010N-R005-020 | 0.8 | R0.05 | 1, 4 | 0.95 | 2.72 | 2 | 2.88 | 16° | 3.03 | 50 | 3.3 | 2.54 | - |
| DMH4 010N-R02-060 | 0.8 | R0.2 | 4, 1 | 0.95 | 7.1 | 6 | 7.35 | 16° | 7.6 | 50 | 8.16 | 6.78 | - |
| DMH4 010N-R02-080 | 0.8 | R0.2 | 4, 1 | 0.95 | 9.24 | 8 | 9.55 | 16° | 9.88 | 50 | 10.61 | 8.89 | - |
| DMH4 010N-R03-020 | 0.8 | R0.3 | 4, 1 | 0.95 | 2.69 | 2 | 2.84 | 16° | 2.98 | 50 | 3.24 | 2.52 | - |
| DMH4 010N-R03-030 | 0.8 | R0.3 | 1, 4 | 0.95 | 3.81 | 3 | 3.99 | 16° | 4.16 | 50 | 4.47 | 3.59 | - |
| DMH4 025N-R02-060 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| DMH4 025N-R05-300 | 2 | RO.5 | 4, 2.5 | 2.42 | 31.96 | 30 | - | - | - | 70 | - | 30.97 | 16° |
| DMH4 020N-R005-040 | 1.6 | R0.05 | 4, 2 | 1.92 | 4.28 | 4 | 4.43 | 16° | 4.58 | 50 | 4.93 | 4.15 | - |
| DMH4 020N-R005-100 | 1.6 | R0.05 | 4, 2 | 1.92 | 10.67 | 10 | 11.03 | 16° | 11.41 | 50 | 12.27 | 10.34 | - |
| DMH4 020N-R01-040 | 1.6 | R0.1 | 2, 4 | 1.92 | 4.29 | 4 | 4.43 | 16° | 4.59 | 50 | 4.93 | 4.16 | - |
| DMH4 020N-R01-200 | 1.6 | R0.1 | 4, 2 | 1.92 | 21.33 | 20 | 22.04 | 16° | 22.81 | 60 | - | 20.66 | - |
| DMH4 020N-R02-040 | 1.6 | R0.2 | 4, 2 | 1.92 | 4.29 | 4 | 4.43 | 16° | 4.58 | 50 | 4.92 | 4.15 | - |
| DMH4 020N-R05-060 | 1.6 | R0.5 | 2, 4 | 1.92 | 6.41 | 6 | 6.62 | 16° | 6.84 | 50 | 7.34 | 6.21 | - |
| DMH4 020N-R05-120 | 1.6 | R0.5 | 4, 2 | 1.92 | 12.8 | 12 | 13.22 | 16° | 13.67 | 55 | 14.68 | 12.4 | - |
| DMH4 020N-R05-160 | 1.6 | R0.5 | 2, 4 | 1.92 | 17.06 | 16 | 17.62 | 16° | 18.23 | 60 | 19.57 | 16.53 | - |
| DMH4 020N-R05-200 | 1.6 | R0.5 | 4, 2 | 1.92 | 21.31 | 20 | 22.02 | 16° | 22.78 | 60 | - | 20.65 | - |
| DMH4 030N-R005-040 | 2.4 | R0.05 | 6, 3 | 2.92 | 4.28 | 4 | 4.42 | 16° | 4.58 | 55 | 4.92 | 4.14 | - |
| DMH4 030N-R01-040 | 2.4 | R0.1 | 6, 3 | 2.92 | 4.29 | 4 | 4.43 | 16° | 4.58 | 55 | 4.93 | 4.15 | - |
| DMH4 030N-R01-060 | 2.4 | R0.1 | 6, 3 | 2.92 | 6.42 | 6 | 6.63 | 16° | 6.86 | 55 | 7.37 | 6.21 | - |
| DMH4 030N-R02-060 | 2.4 | R0.2 | 3, 6 | 2.92 | 6.41 | 6 | 6.63 | 16° | 6.85 | 55 | 7.36 | 6.21 | - |
| DMH4 030N-R02-100 | 2.4 | R0.2 | 6, 3 | 2.92 | 10.66 | 10 | 11.02 | 16° | 11.4 | 55 | 12.25 | 10.33 | - |
| DMH4 030N-R02-300 | 2.4 | R0.2 | 6, 3 | 2.92 | 31.97 | 30 | 33.04 | 16° | 34.18 | 70 | - | 30.97 | - |
| DMH4 030N-R03-060 | 2.4 | R0.3 | 6, 3 | 2.92 | 6.41 | 6 | 6.62 | 16° | 6.85 | 55 | 7.35 | 6.21 | - |
| DMH4 030N-R03-120 | 2.4 | R0.3 | 6, 3 | 2.92 | 12.8 | 12 | 13.22 | 16° | 13.68 | 55 | 14.7 | 12.4 | - |
| DMH4 030N-R03-160 | 2.4 | R0.3 | 6, 3 | 2.92 | 17.06 | 16 | 17.63 | 16° | 18.23 | 60 | 19.59 | 16.53 | - |
| DMH4 030N-R05-260 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| DMH4 030N-R05-060 | 2.4 | R0.5 | 6, 3 | 2.92 | 6.4 | 6 | 6.61 | 16° | 6.83 | 55 | 7.33 | 6.21 | - |
| DMH4 030N-R05-100 | 2.4 | R0.5 | 3, 6 | 2.92 | 10.65 | 10 | 11 | 16° | 11.38 | 55 | 12.22 | 10.32 | - |
| DMH4 030N-R05-120 | 2.4 | R0.5 | 6, 3 | 2.92 | 12.79 | 12 | 13.21 | 16° | 13.67 | 55 | 14.67 | 12.4 | - |
| DMH4 030N-R05-160 | 2.4 | R0.5 | 6, 3 | 2.92 | 17.05 | 16 | 17.62 | 16° | 18.22 | 60 | 19.57 | 16.52 | - |
| DMH4 030N-R10-160 | 2.4 | R1 | 6, 3 | 2.92 | 17.04 | 16 | 17.59 | 16° | 18.19 | 60 | 19.52 | 16.51 | - |
| DMH4 040N-R01-080 | 3.2 | R0.1 | 4, 6 | 3.82 | 8.73 | 8 | 9.02 | 16° | 9.33 | 65 | 10.03 | 8.45 | - |
| DMH4 040N-R02-200 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| DMH4 040N-R02-320 | 3.2 | R0.2 | 6, 4 | 3.82 | 34.28 | 32 | 35.43 | 16° | - | 80 | - | 33.2 | - |
| DMH4 040N-R02-080 | 3.2 | R0.2 | 6, 4 | 3.82 | 8.72 | 8 | 9.01 | 16° | 9.33 | 65 | 10.02 | 8.45 | - |
| DMH4 040N-R03-160 | 3.2 | R0.3 | 6, 4 | 3.82 | 17.24 | 16 | 17.81 | 16° | 18.43 | 65 | - | 16.7 | - |
| DMH4 040N-R05-080 | 3.2 | R0.5 | 6, 4 | 3.82 | 8.71 | 8 | 9 | 16° | 9.31 | 65 | 9.99 | 8.45 | - |
| DMH4 040N-R05-160 | 3.2 | R0.5 | 6, 4 | 3.82 | 17.23 | 16 | 17.8 | 16° | 18.42 | 65 | - | 16.7 | - |
| DMH4 040N-R05-240 | 3.2 | R0.5 | 4, 6 | 3.82 | 25.75 | 24 | 26.61 | 16° | 27.52 | 70 | - | 24.95 | - |
| DMH4 040N-R05-320 | 3.2 | R0.5 | 6, 4 | 3.82 | 34.27 | 32 | 35.41 | 16° | - | 80 | - | 33.2 | - |
| DMH4 060N-R01-120 | 4.8 | R0.1 | 6 | 5.82 | - | 12 | - | - | - | 65 | - | - | - |
| DMH4 060N-R02-120 | 4.8 | R0.2 | 6 | 5.82 | - | 12 | - | - | - | 65 | - | - | - |
| DMH4 060N-R02-300 | 4.8 | R0.2 | 6 | 5.82 | - | 30 | - | - | - | 100 | - | - | - |
| DMH4 060N-R03-120 | 4.8 | R0.3 | 6 | 5.82 | - | 12 | - | - | - | 65 | - | - | - |
| DMH4 060N-R03-200 | 4.8 | R0.3 | 6 | 5.82 | - | 20 | - | - | - | 70 | - | - | - |
| DMH4 060N-R05-120 | 4.8 | R0.5 | 6 | 5.82 | - | 12 | - | - | - | 65 | - | - | - |
| DMH4 060N-R05-200 | 4.8 | R0.5 | 6 | 5.82 | - | 20 | - | - | - | 70 | - | - | - |
