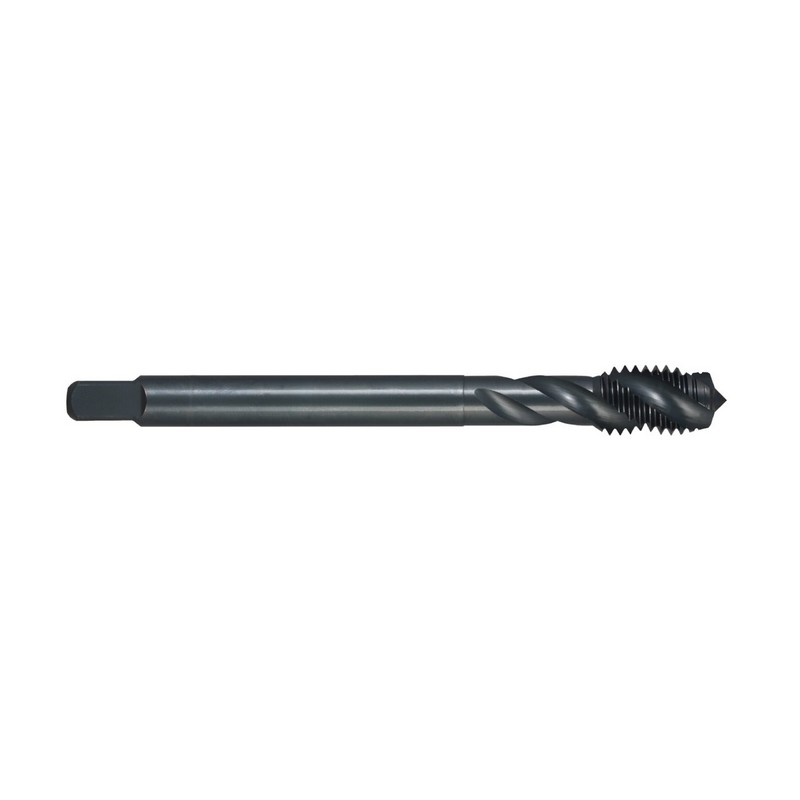

Product Id: EVOSF M22X2.5
| L1 | 140.0 |
|---|---|
| D1 | M22 |
| a | 14.5 |
| D2 | 18.0 |
| Pitch | 2.5 |
| Drill | 19.5 |
| L2 | 25.0 |
| Tool No. | L1 | D1 | a | D2 | Pitch | Drill | L2 |
|---|---|---|---|---|---|---|---|
EVOSF M22X2.5 | 140.0 | M22 | 14.5 | 18.0 | 2.5 | 19.5 | 25.0 |
| EVOSF M10X1.5 | 100.0 | M10 | 8.0 | 10.0 | 1.5 | 8.5 | 15.0 |
| EVOSF M2X0.4 | 45.0 | M2 | 2.1 | 2.8 | 0.4 | 1.6 | 6.0 |
| EVOSF M3X0.5 | 56.0 | M3 | 2.7 | 3.5 | 0.5 | 2.5 | 5.0 |
| EVOSF M4X0.7 | 63.0 | M4 | 3.4 | 4.5 | 0.7 | 3.3 | 7.0 |
| EVOSF M5X0.8 | 70.0 | M5 | 4.9 | 6.0 | 0.8 | 4.2 | 8.0 |
| EVOSF M6X1.0 | 80.0 | M6 | 4.9 | 6.0 | 1.0 | 5.0 | 10.0 |
| EVOSF M8X1.25 | 90.0 | M8 | 6.2 | 8.0 | 1.25 | 6.8 | 13.0 |
| EVOSF M10X1.25 | 100.0 | M10 | 5.5 | 7.0 | 1.25 | 8.8 | 15.0 |
| EVOSF M12X1.25 | 100.0 | M12 | 7.0 | 9.0 | 1.25 | 10.8 | 14.0 |
| EVOSF M12X1.5 | 100.0 | M12 | 7.0 | 9.0 | 1.5 | 10.5 | 14.0 |
| EVOSF M14X1.5 | 100.0 | M14 | 9.0 | 11.0 | 1.5 | 12.5 | 16.0 |
| EVOSF M16X1.5 | 100.0 | M16 | 9.0 | 12.0 | 1.5 | 14.5 | 16.0 |
| EVOSF M10X1.0 | - | - | - | - | - | - | - |
| EVOSF M8X1.0 | - | - | - | - | - | - | - |
| EVOSF M12X1.75 | 110.0 | M12 | 7.0 | 9.0 | 1.75 | 10.2 | 18.0 |
| EVOSF M14X2.0 | 110.0 | M14 | 9.0 | 11.0 | 2.0 | 12.0 | 20.0 |
| EVOSF M16X2.0 | 110.0 | M16 | 9.0 | 12.0 | 2.0 | 14.0 | 20.0 |
| EVOSF M18X2.5 | 125.0 | M18 | 11.0 | 14.0 | 2.5 | 15.5 | 25.0 |
| EVOSF M20X2.5 | 140.0 | M20 | 12.0 | 16.0 | 2.5 | 17.5 | 25.0 |
| EVOSF M24X3.0 | 160.0 | M24 | 14.5 | 18.0 | 3.0 | 21.0 | 30.0 |
| EVOSF M30X3.5 | 180.0 | M30 | 18.0 | 22.0 | 3.5 | 26.5 | 35.0 |
| EVOSF-T UNC 1/4-20 | 80.0 | UNC 1/4 | 5.2 | 7.0 | 20.0 | 5.2 | 10.0 |
