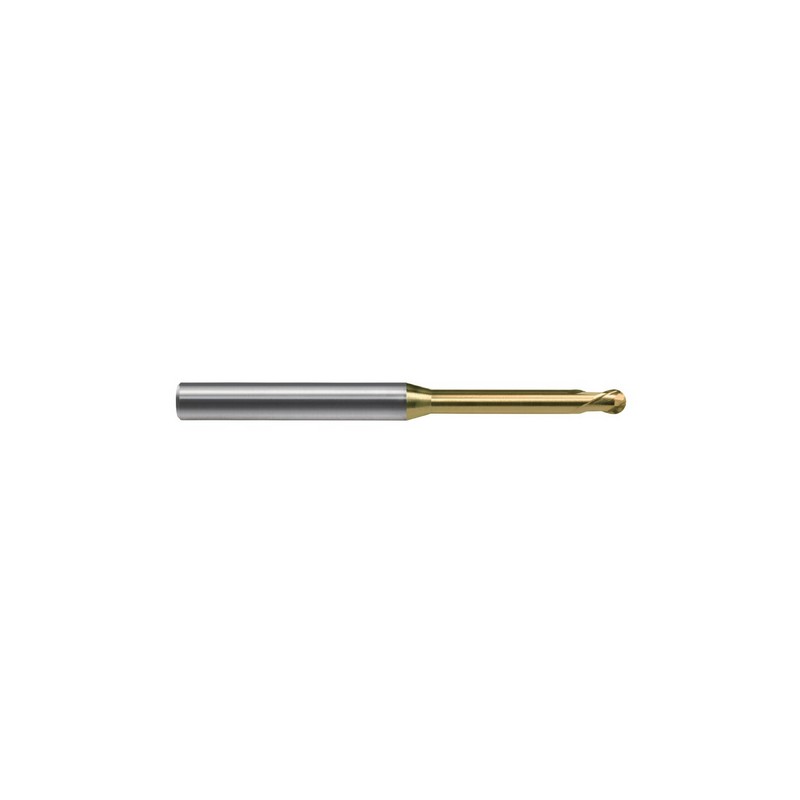

MA Ford Europe. 2 flt ballnosed long neck endmill 0.3mm dia x 0.5mm flt ALti

e1 1°30'	0.66
øD	0.3, 4
e1 3°	0.73
e1 2°	0.69
e1	0.5
e1 30'	0.61
R	R0.15
L	45
øD1	0.27
e	0.24
Bta	16°
e1 1°	0.63

Product Range

Tool No.	e1 1°30'	øD	e1 3°	e1 2°	e1	e1 30'	R	L	øD1	e	Bta	e1 1°	L2	L3	L3 1°30'	L1	L3 3°	L3 2°	L3 30'	L3 1°	Α
DMH2B 003N-005	0.66	0.3, 4	0.73	0.69	0.5	0.61	R0.15	45	0.27	0.24	16°	0.63	-	-	-	-	-	-	-	-	-
DMH2B 002N-005	0.67	4, 0.2	0.74	0.69	0.5	0.61	R0.1	45	0.17	0.16	16°	0.64	-	-	-	-	-	-	-	-	-
DMH2B 003N-0075	0.94	4, 0.3	1.04	0.97	0.75	0.87	R0.15	45	0.27	0.24	16°	0.91	-	-	-	-	-	-	-	-	-
DMH2B 003N-015	1.76	4, 0.3	1.95	1.82	1.5	1.64	R0.15	45	0.27	0.24	16°	1.7	-	-	-	-	-	-	-	-	-
DMH2B 003N-010	1.22	0.3, 4	1.35	1.26	1	1.13	R0.15	45	0.27	0.24	16°	1.18	-	-	-	-	-	-	-	-	-
DMH2B 003N-020	2.31	4, 0.3	2.56	2.39	2	2.16	R0.15	45	0.27	0.24	16°	2.24	-	-	-	-	-	-	-	-	-
DMH2B 004N-005	0.65	0.4, 4	0.72	0.68	0.5	0.6	R0.2	45	0.37	0.32	16°	0.63	-	-	-	-	-	-	-	-	-
DMH2B 004N-015	1.75	0.4, 4	1.94	1.81	1.5	1.64	R0.2	45	0.37	0.32	16°	1.7	-	-	-	-	-	-	-	-	-
DMH2B 004N-010	1.21	0.4, 4	1.33	1.25	1	1.13	R0.2	45	0.37	0.32	16°	1.17	-	-	-	-	-	-	-	-	-
DMH2B 004N-025	2.85	4, 0.4	3.16	2.95	2.5	2.68	R0.2	45	0.37	0.32	16°	2.77	-	-	-	-	-	-	-	-	-
DMH2B 004N-020	2.3	0.4, 4	2.55	2.38	2	2.16	R0.2	45	0.37	0.32	16°	2.23	-	-	-	-	-	-	-	-	-
DMH2B 004N-030	3.41	4, 0.4	3.77	3.52	3	3.2	R0.2	45	0.37	0.32	16°	3.3	-	-	-	-	-	-	-	-	-
DMH2B 004N-040	4.51	4, 0.4	5	4.66	4	4.23	R0.2	45	0.37	0.32	16°	4.36	-	-	-	-	-	-	-	-	-
DMH2B 004N-050	5.61	4, 0.4	6.22	5.8	5	5.26	R0.2	45	0.37	0.32	16°	5.43	-	-	-	-	-	-	-	-	-
DMH2B 005N-015	1.75	4, 0.5	1.93	1.8	1.5	1.64	R0.25	45	0.47	0.4	16°	1.7	-	-	-	-	-	-	-	-	-
DMH2B 005N-010	1.21	0.5, 4	1.32	1.24	1	1.13	R0.25	45	0.47	0.4	16°	1.17	-	-	-	-	-	-	-	-	-
DMH2B 005N-020	2.3	0.5, 4	2.54	2.37	2	2.16	R0.25	45	0.47	0.4	16°	2.23	-	-	-	-	-	-	-	-	-
DMH2B 005N-030	3.4	4, 0.5	3.76	3.51	3	3.2	R0.25	45	0.47	0.4	16°	3.3	-	-	-	-	-	-	-	-	-
DMH2B 006N-015	1.74	0.6, 4	1.91	1.8	1.5	1.63	R0.3	45	0.57	0.48	16°	1.69	-	-	-	-	-	-	-	-	-
DMH2B 006N-100	11.1	0.6, 4	12.32	11.48	10	10.42	R0.3	50	0.57	0.48	16°	10.75	-	-	-	-	-	-	-	-	-
DMH2B 006N-010	1.2	4, 0.6	1.31	1.24	1	1.12	R0.3	45	0.57	0.48	16°	1.17	-	-	-	-	-	-	-	-	-
DMH2B 006N-020	2.29	0.6, 4	2.53	2.37	2	2.16	R0.3	45	0.57	0.48	16°	2.23	-	-	-	-	-	-	-	-	-
DMH2B 006N-040	4.5	0.6, 4	4.97	4.64	4	4.23	R0.3	45	0.57	0.48	16°	4.36	-	-	-	-	-	-	-	-	-
DMH2B 008N-100	11.09	4, 0.8	12.29	11.46	10	10.41	R0.4	50	0.77	0.64	16°	10.74	-	-	-	-	-	-	-	-	-
DMH2B 008N-020	2.28	0.8, 4	2.5	2.35	2	2.15	R0.4	45	0.77	0.64	16°	2.22	-	-	-	-	-	-	-	-	-
DMH2B 008N-040	4.49	4, 0.8	4.95	4.63	4	4.22	R0.4	45	0.77	0.64	16°	4.35	-	-	-	-	-	-	-	-	-
DMH2B 008N-050	5.59	4, 0.8	6.18	5.77	5	5.26	R0.4	45	0.77	0.64	16°	5.42	-	-	-	-	-	-	-	-	-
DMH2B 008N-060	6.69	4, 0.8	7.4	6.91	6	6.29	R0.4	45	0.77	0.64	16°	6.48	-	-	-	-	-	-	-	-	-
DMH2B 008N-080	8.89	4, 0.8	9.85	9.18	8	8.35	R0.4	45	0.77	0.64	16°	8.61	-	-	-	-	-	-	-	-	-
DMH2B 012N-060	6.5	1.2, 4	7.18	6.71	6	6.13	R0.6	45	1.16	0.96	16°	6.31	-	-	-	-	-	-	-	-	-
DMH2B 014N-060	6.53	1.4, 4	7.2	6.74	6	6.16	R0.7	45	1.34	1.12	16°	6.34	-	-	-	-	-	-	-	-	-
DMH2B 015N-100	10.93	4, 1.5	12.08	11.29	10	10.28	R0.75	45	1.43	1.2	16°	10.6	-	-	-	-	-	-	-	-	-
DMH2B 015N-160	17.53	4, 1.5	19.42	18.12	16	16.47	R0.75	50	1.43	1.2	16°	16.98	-	-	-	-	-	-	-	-	-
DMH2B 015N-300	32.94	1.5, 4	-	34.06	30	30.91	R0.75	70	1.43	1.2	16°	31.89	-	-	-	-	-	-	-	-	-
DMH2B 015N-030	3.23	4, 1.5	3.52	3.32	3	3.06	R0.75	45	1.43	1.2	16°	3.14	-	-	-	-	-	-	-	-	-
DMH2B 015N-040	4.33	1.5, 4	4.74	4.45	4	4.1	R0.75	45	1.43	1.2	16°	4.21	-	-	-	-	-	-	-	-	-
DMH2B 015N-060-6	6.53	1.5, 6	7.19	6.73	6	6.16	R0.75	50	1.43	1.2	16°	6.34	-	-	-	-	-	-	-	-	-
DMH2B 015N-080	8.73	1.5, 4	9.63	9.01	8	8.22	R0.75	45	1.43	1.2	16°	8.47	-	-	-	-	-	-	-	-	-
DMH2B 010N-100	11.09	4, 1	12.28	11.46	10	10.42	R0.5	45	0.95	0.8	16°	10.74	-	-	-	-	-	-	-	-	-
DMH2B 010N-120	13.29	4, 1	14.73	13.74	12	12.48	R0.5	45	0.95	0.8	16°	12.87	-	-	-	-	-	-	-	-	-
DMH2B 010N-160	17.69	4, 1	19.63	18.29	16	16.61	R0.5	50	0.95	0.8	16°	17.13	-	-	-	-	-	-	-	-	-
DMH2B 010N-200	22.1	4, 1	24.52	22.55	20	20.73	R0.5	55	0.95	0.8	16°	21.39	-	-	-	-	-	-	-	-	-
DMH2B 010N-020	2.29	4, 1	2.5	2.35	2	2.16	R0.5	45	0.95	0.8	16°	2.23	-	-	-	-	-	-	-	-	-
DMH2B 010N-040	4.49	4, 1	4.94	4.63	4	4.23	R0.5	45	0.95	0.8	16°	4.36	-	-	-	-	-	-	-	-	-
DMH2B 010N-040-6	4.49	6, 1	4.94	4.63	4	4.23	R0.5	50	0.95	0.8	16°	4.36	-	-	-	-	-	-	-	-	-
DMH2B 010N-060-6	6.69	6, 1	7.39	6.91	6	6.3	R0.5	50	0.95	0.8	16°	6.49	-	-	-	-	-	-	-	-	-
DMH2B 010N-070	7.79	1, 4	8.61	8.04	7	7.33	R0.5	45	0.95	0.8	16°	7.55	-	-	-	-	-	-	-	-	-
DMH2B 025N-080	-	2.5, 45	-	-	-	-	-	-	2	-	-	-	8	R1.25	8.47	16°	8.98	8.72	4	8.24	2.41
DMH2B 020N-100	10.89	2, 4	12.01	11.23	10	10.26	R1	45	1.93	1.6	16°	10.56	-	-	-	-	-	-	-	-	-
DMH2B 020N-100-6	10.89	2, 6	12.01	11.23	10	10.26	R1	50	1.93	1.6	16°	10.56	-	-	-	-	-	-	-	-	-
DMH2B 020N-160	17.49	2, 4	19.35	18.06	16	16.45	R1	50	1.93	1.6	16°	16.95	-	-	-	-	-	-	-	-	-
DMH2B 020N-160-6	17.49	6, 2	19.35	18.06	16	16.45	R1	60	1.93	1.6	16°	16.95	-	-	-	-	-	-	-	-	-
DMH2B 020N-200	21.89	4, 2	-	22.62	20	20.57	R1	55	1.93	1.6	16°	21.21	-	-	-	-	-	-	-	-	-
DMH2B 020N-250	27.39	4, 2	-	28.31	25	25.73	R1	65	1.93	1.6	16°	26.53	-	-	-	-	-	-	-	-	-
DMH2B 020N-300	32.90	4, 2	-	-	30	30.89	R1	70	1.93	1.6	16°	31.86	-	-	-	-	-	-	-	-	-
DMH2B 020N-030	3.18	4, 2	3.44	3.26	3	3.04	R1	45	1.93	1.6	16°	3.11	-	-	-	-	-	-	-	-	-
DMH2B 020N-040	4.28	2, 4	4.67	4.4	4	4.07	R1	45	1.93	1.6	16°	4.17	-	-	-	-	-	-	-	-	-
DMH2B 020N-060	6.48	4, 2	7.11	6.68	6	6.13	R1	45	1.93	1.6	16°	6.3	-	-	-	-	-	-	-	-	-
DMH2B 020N-060-6	6.48	2, 6	7.11	6.68	6	6.13	R1	50	1.93	1.6	16°	6.3	-	-	-	-	-	-	-	-	-
DMH2B 030N-100	10.89	6, 3	11.96	11.22	10	10.29	R1.5	60	2.9	2.4	16°	10.58	-	-	-	-	-	-	-	-	-
DMH2B 030N-120	13.09	6, 3	14.41	13.5	12	12.35	R1.5	60	2.9	2.4	16°	12.71	-	-	-	-	-	-	-	-	-
DMH2B 030N-140	15.29	3, 6	16.85	15.77	14	14.42	R1.5	60	2.9	2.4	16°	14.84	-	-	-	-	-	-	-	-	-
DMH2B 030N-200	21.89	6, 3	24.19	22.61	20	20.6	R1.5	70	2.9	2.4	16°	21.23	-	-	-	-	-	-	-	-	-
DMH2B 030N-250	27.39	6, 3	30.31	28.3	25	25.76	R1.5	70	2.9	2.4	16°	26.55	-	-	-	-	-	-	-	-	-
DMH2B 030N-300	32.9	6, 3	-	33.99	30	30.92	R1.5	70	2.9	2.4	16°	31.88	-	-	-	-	-	-	-	-	-
DMH2B 030N-350	38.4	6, 3	-	39.69	35	36.08	R1.5	80	2.9	2.4	16°	37.2	-	-	-	-	-	-	-	-	-
DMH2B 030N-400	43.9	6, 3	-	-	40	41.23	R1.5	80	2.9	2.4	16°	42.52	-	-	-	-	-	-	-	-	-
DMH2B 030N-060	6.49	6, 3	7.06	6.66	6	6.17	R1.5	60	2.9	2.4	16°	6.32	-	-	-	-	-	-	-	-	-
DMH2B 030N-080	8.69	6, 3	9.51	8.94	8	8.23	R1.5	60	2.9	2.4	16°	8.45	-	-	-	-	-	-	-	-	-
DMH2B 040N-120	13.04	6, 4	14.3	13.43	12	12.34	R2	70	3.9	3.2	16°	12.68	-	-	-	-	-	-	-	-	-
DMH2B 040N-140	15.24	6, 4	16.75	15.71	14	14.4	R2	70	3.9	3.2	16°	14.81	-	-	-	-	-	-	-	-	-
DMH2B 040N-200	21.84	4, 6	-	22.54	20	20.59	R2	70	3.9	3.2	16°	21.2	-	-	-	-	-	-	-	-	-
DMH2B 040N-250	27.35	6, 4	-	28.23	25	25.75	R2	70	3.9	3.2	16°	26.52	-	-	-	-	-	-	-	-	-
DMH2B 040N-300	32.85	4, 6	-	-	30	30.9	R2	70	3.9	3.2	16°	31.84	-	-	-	-	-	-	-	-	-
DMH2B 040N-400	-	6, 4	-	-	40	41.22	R2	90	3.9	3.2	16°	42.49	-	-	-	-	-	-	-	-	-
DMH2B 040N-080	8.64	6, 4	9.4	8.87	8	8.21	R2	70	3.9	3.2	16°	8.42	-	-	-	-	-	-	-	-	-
DMH2B 060N-100	-	6	-	-	10	-	R2	80	5.9	4.8	16°	-	-	-	-	-	-	-	-	-	-
DMH2B 060N-200	-	6	-	-	20	-	R2	80	5.9	4.8	16°	-	-	-	-	-	-	-	-	-	-
DMH2B 060N-300	-	6	-	-	30	-	R2	80	5.9	4.8	16°	-	-	-	-	-	-	-	-	-	-
