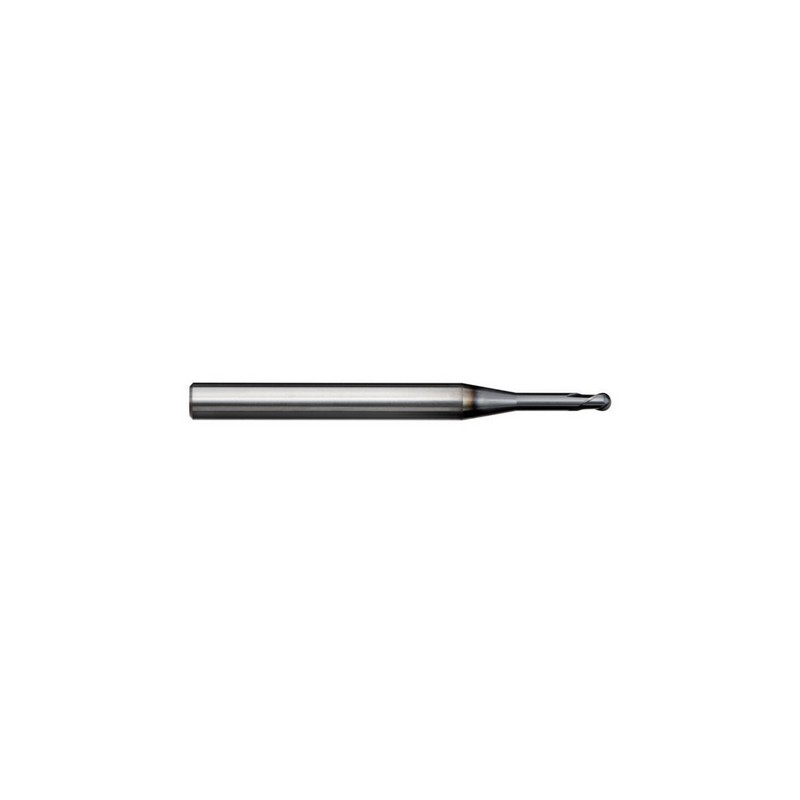

MA Ford Europe. 2 flt ballnosed long neck endmill 0.5mm dia x 3mm flt ALtima

L3	3
L3 1°30’	4.14, 3.52
øD	0.5, 4
L3 2°	3.7
R	R0.25
øD1	0.49
L2	0.4
L3 30’	3.21
a	11°
L1	45
L3 1°	3.36

Product Range

Tool No.	L3	L3 1°30’	øD	L3 2°	R	øD1	L2	L3 30’	a	L1	L3 1°	Α	L3 30'
DM2B 005N-030	3	4.14, 3.52	0.5, 4	3.7	R0.25	0.49	0.4	3.21	11°	45	3.36	-	-
DM2B 002N-010	1	1.25, 1.48	0.2, 4	1.32	R0.1	0.19	0.16	1.14	11°	45	1.19	-	-
DM2B 003N-015	1.5	1.81, 2.12	0.3, 4	1.9	R0.15	0.29	0.24	1.64	11°	45	1.72	-	-
DM2B 003N-020	2	2.81, 2.38	4, 0.3	2.51	R0.15	0.29	0.24	2.17	11°	45	2.27	-	-
DM2B 003N-030	3	4.18, 3.54	0.3, 4	3.73	R0.15	0.29	0.24	3.22	11°	45	3.37	-	-
DM2B 004N-030	3	3.53, 4.16	0.4, 4	3.72	R0.2	0.39	0.32	3.21	11°	45	3.36	-	-
DM2B 004N-040	4	4.69, 5.53	4, 0.4	4.94	R0.2	0.39	0.32	4.26	11°	45	4.46	-	-
DM2B 005N-025	2.5	2.94, 3.45	0.5, 4	3.1	R0.25	0.49	0.4	2.68	11°	45	2.81	-	-
DM2B 005N-020	2	2.77, 2.37	4, 0.5	2.49	R0.25	0.49	0.4	2.16	11°	45	2.26	-	-
DM2B 005N-060	6	6.99, 8.25	0.5, 4	7.36	R0.25	0.49	0.4	6.35	11°	45	6.65	-	-
DM2B 006N-010	1	1.22, 1.4	4, 0.6	1.27	R0.3	0.59	0.48	1.12	11°	45	1.17	-	-
DM2B 006N-030	3	3.51, 4.12	0.6, 4	3.69	R0.3	0.59	0.48	3.21	11°	45	3.35	-	-
DM2B 006N-040	4	4.67, 5.49	4, 0.6	4.91	R0.3	0.59	0.48	4.25	11°	45	4.45	-	-
DM2B 006N-060	6	6.98, 8.23	0.6, 4	7.35	R0.3	0.59	0.48	6.35	11°	45	6.65	-	-
DM2B 006N-080	8	10.97, 9.29	4, 0.6	9.79	R0.3	0.59	0.48	8.44	11°	45	8.85	-	-
DM2B 008N-060	6	8.19, 6.97	4, 0.8	7.33	R0.4	0.79	0.64	6.34	11°	45	6.64	-	-
DM2B 008N-080	8	10.93, 9.28	0.8, 4	9.77	R0.4	0.79	0.64	8.44	11°	45	8.84	-	-
DM2B 012N-040	4	4.53, 5.27	4, 1.2	4.75	R0.6	1.19	0.96	4.15	11°	45	4.33	-	-
DM2B 012N-060	6	8.01, 6.84	4, 1.2	7.19	R0.6	1.19	0.96	6.25	11°	45	6.53	-	-
DM2B 015N-100	10	11.5, 13.5	4, 1.5	12.09	R0.75	1.47	1.2	10.48	11°	45	10.97	-	-
DM2B 015N-120	12	16.24, 13.81	1.5, 4	14.53	R0.75	1.47	1.2	12.58	11°	45	13.16	-	-
DM2B 015N-030	-	-	-	-	-	-	-	-	-	-	-	-	-
DM2B 015N-040	4	5.29, 4.57	1.5, 4	4.78	R0.75	1.47	1.2	4.2	11°	45	4.37	-	-
DM2B 015N-060	6	8.03, 6.88	4, 1.5	7.22	R0.75	1.47	1.2	6.29	11°	45	6.57	-	-
DM2B 015N-080	8	10.77, 9.19	1.5, 4	9.66	R0.75	1.47	1.2	8.39	11°	45	8.77	-	-
DM2B 016N-160	-	-	-	-	-	-	-	-	-	-	-	-	-
DM2B 010N-020	2	2.7, 2.35	1, 4	2.45	R0.5	0.98	0.8	2.17	11°	45	2.25	-	-
DM2B 010N-030	3	3.5, 4.07	1, 4	3.67	R0.5	0.98	0.8	3.21	11°	45	3.35	-	-
DM2B 020N-100-6	10	13.38, 11.43	2, 6	12.01	R1	1.98	1.6	10.44	11°	50	10.91	-	-
DM2B 020N-140	14	18.85, 16.06	2, 4	16.89	R1	1.98	1.6	14.63	11°	50	15.31	-	-
DM2B 020N-160	16	18.37	4, 2	19.32	R1	1.98	1.6	16.73	11°	50	17.51	-	-
DM2B 020N-200	-	-	-	-	-	-	-	-	-	-	-	-	-
DM2B 020N-300	30	34.55	4, 2	-	R1	1.98	1.6	31.38	11°	70	32.89	-	-
DM2B 020N-030	3	3.34, 3.79	4, 2	3.48	R1	1.98	1.6	3.11	11°	45	3.22	-	-
DM2B 020N-400	40	-	2, 4	-	R1	1.98	1.6	41.85	11°	80	43.87	-	-
DM2B 020N-040	4	4.5, 5.16	2, 4	4.7	R1	1.98	1.6	4.16	11°	45	4.32	-	-
DM2B 030N-120	12	13.76, 16.04	3, 6	14.43	R1.5	2.95	2.4	12.6	11°	60	13.15	-	-
DM2B 030N-300	30	34.56	6, 3	36.38	R1.5	2.95	2.4	31.44	11°	70	32.92	-	-
DM2B 030N-350	35	40.34	3, 6	42.47	R1.5	2.95	2.4	36.68	11°	80	38.42	-	-
DM2B 030N-080	8	9.13, 10.57	6, 3	9.56	R1.5	2.95	2.4	8.41	11°	60	8.75	-	-
DM2B 040N-160	16	18.3	6, 4	19.2	R2	3.95	3.2	16.76	11°	70	17.49	-	-
DM2B 040N-250	25	28.7	4, 6	30.17	R2	3.95	3.2	26.18	11°	70	27.38	-	-
DM2B 040N-300	30	34.48	6, 4	-	R2	3.95	3.2	31.42	11°	70	32.87	-	-
DM2B 040N-080-4	R2	-	70, 4	-	-	3.2	8	-	-	11°	-	3.95	4
